Most would call this an indicator stand. We call it the Squarellel Checker! Sometimes we fumble words and they just end up working. But, what this inspects is what tool makers call the “top 3” which, are Flatness, Parallel & Perpendicularity and allows you to inspect these dimensions with ease with no sacrifice to either check.

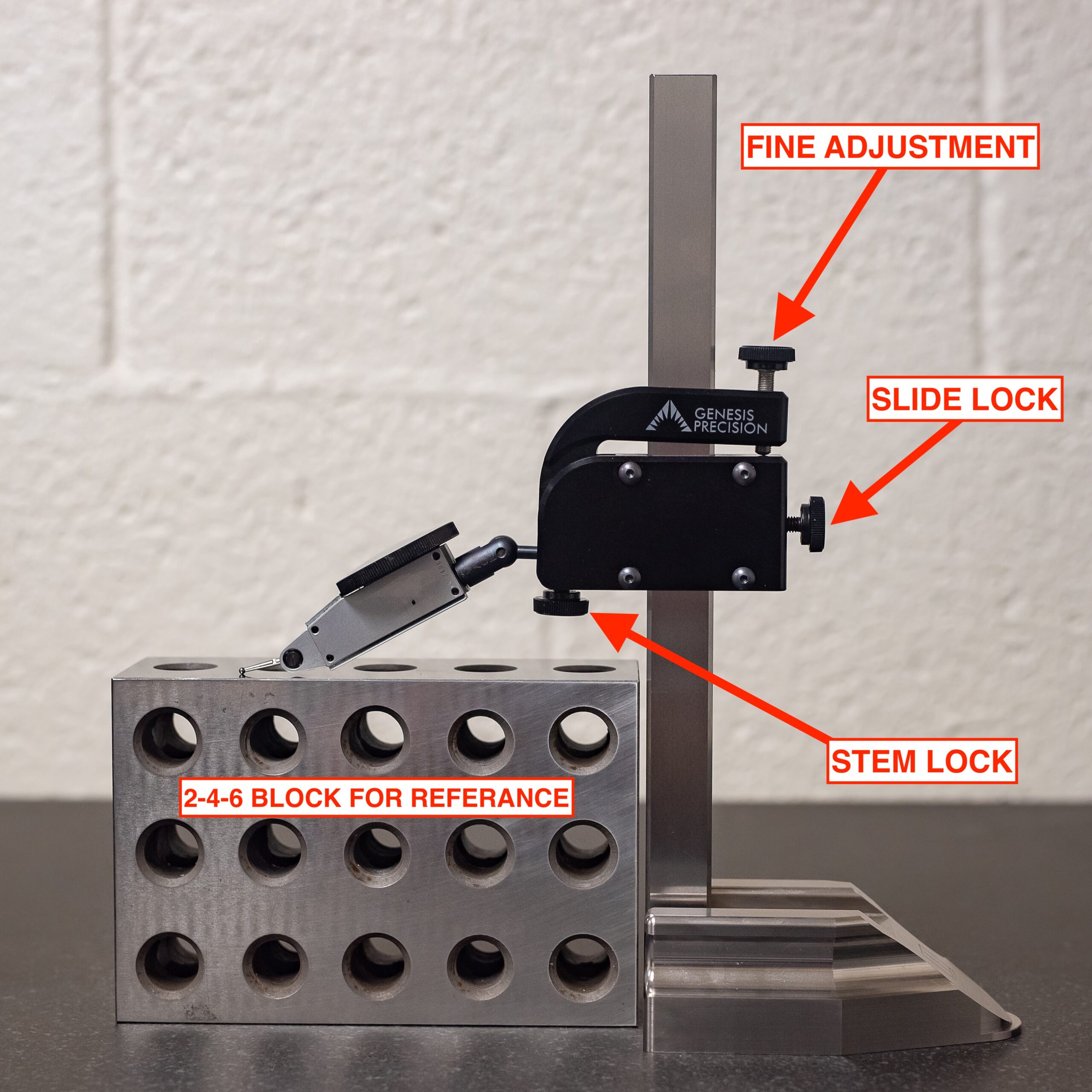

The heavy steel base will keep it from tipping and the smooth feel of the preloaded ballbearings in the slide aid in the smooth positioning up or down without falling. The locking thumb screw at the rear of the slide is ground perp and flat to the screw’s axis giving the finger tips a feel that only a tool maker understands. The indicators’ fine adjustment screw is located right where it needs to be with a polished ball-end for that precise adjustment you demand.

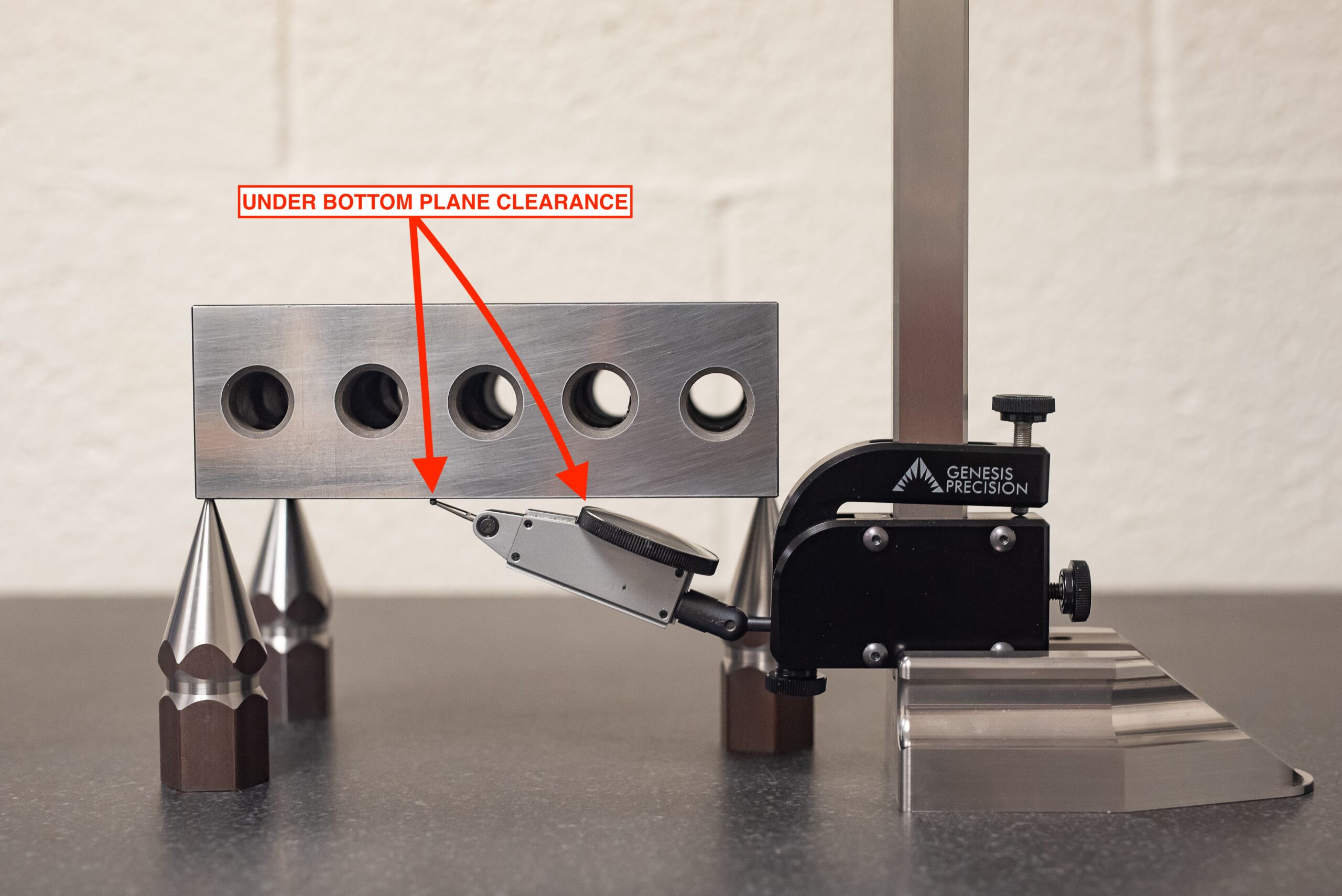

We include a pivot attachment for use with your favorite indicator (not included) that aids in the quick positioning of the indictor for over and under part inspections.

The entire slide is designed to pull right off the post and rotate 180 degrees and re-mount for the world’s best squareness checker.  No fussy knobs, screws or awkward handling.

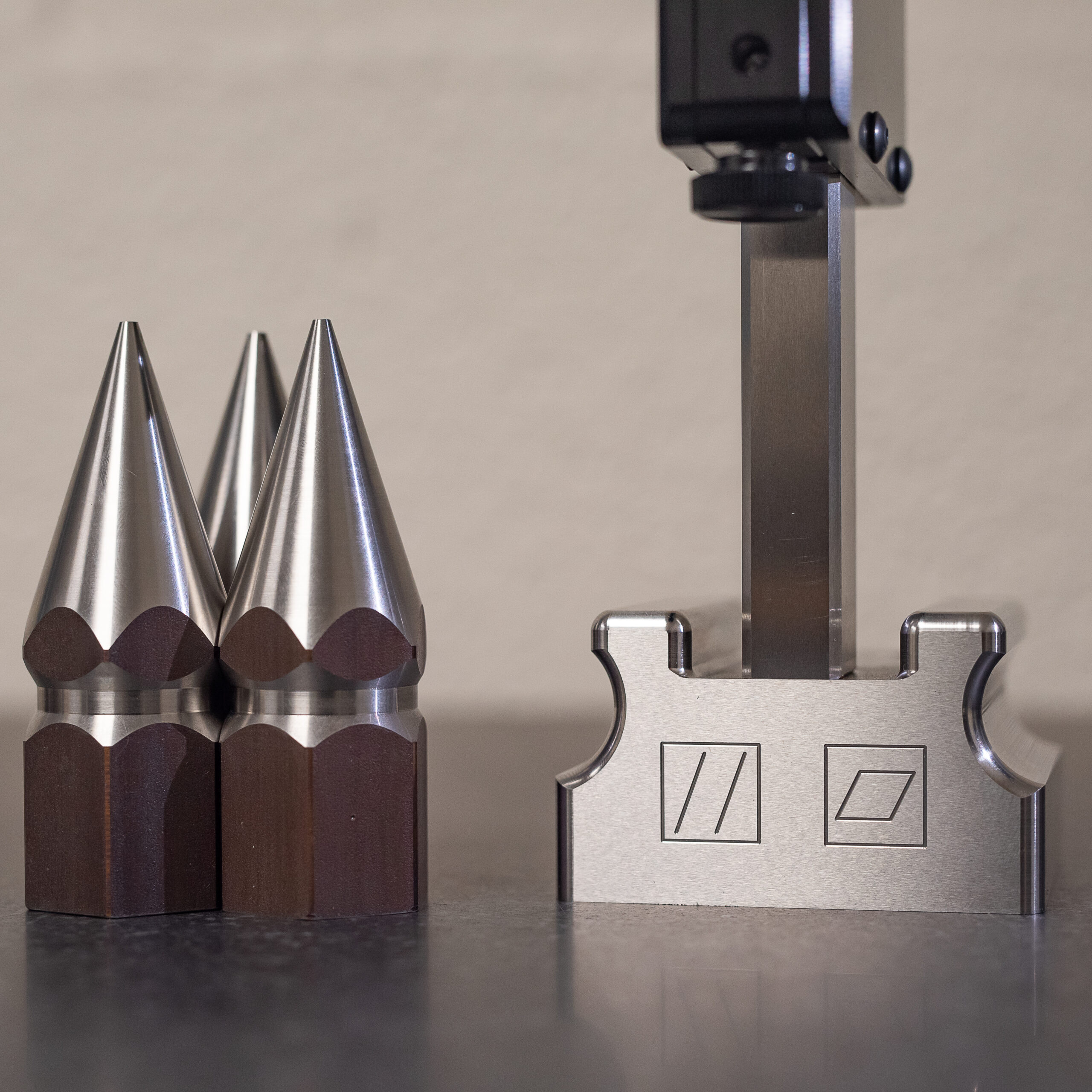

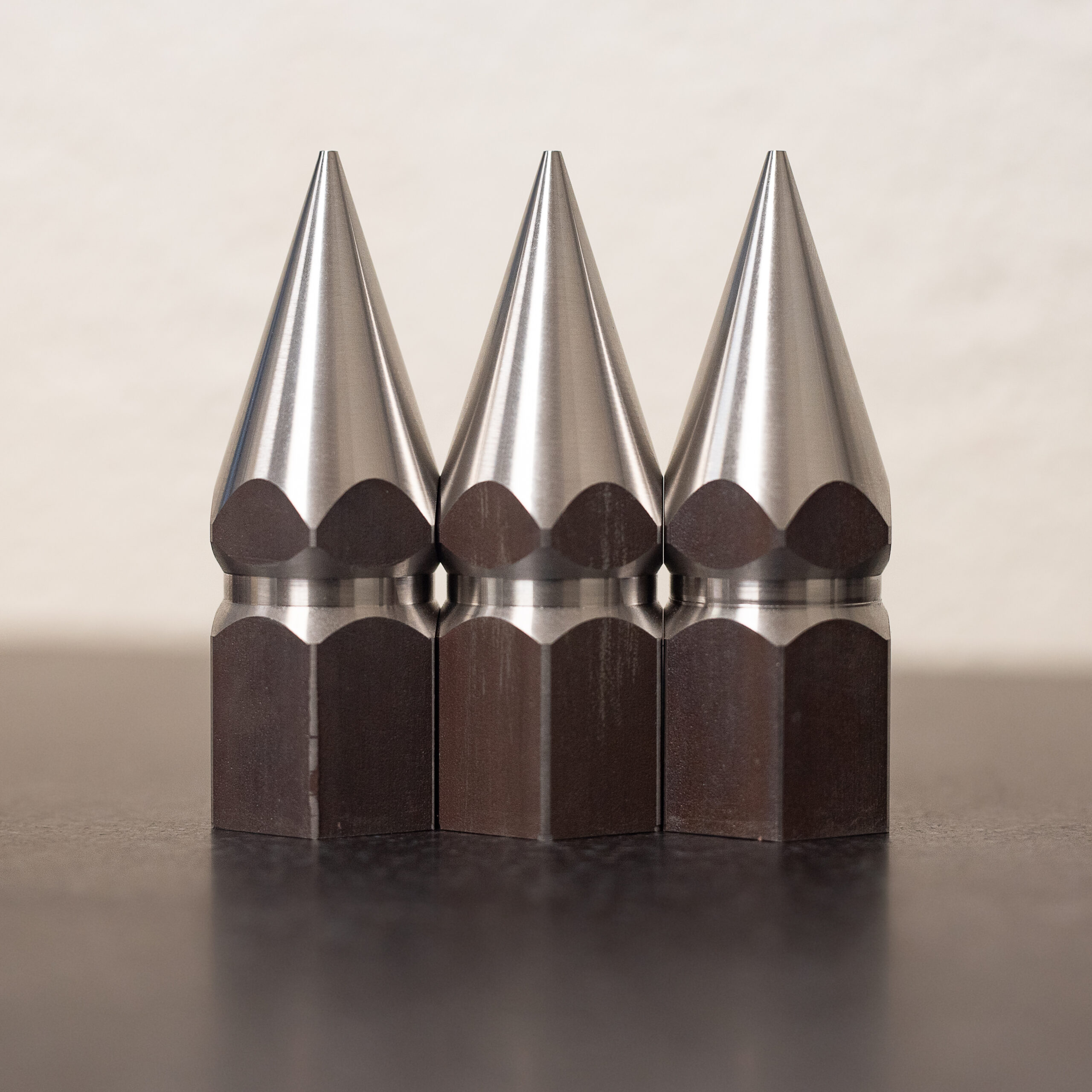

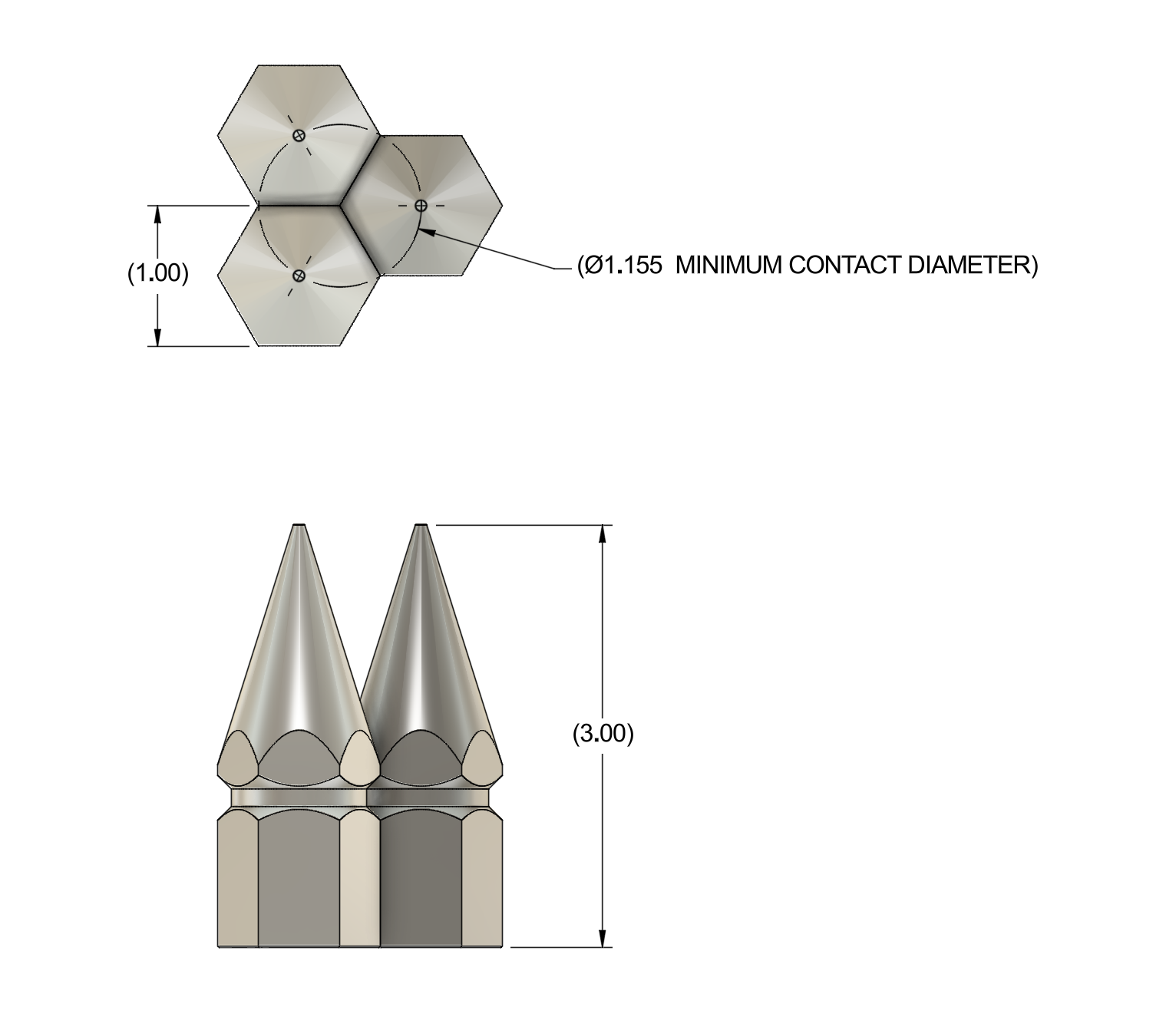

Our Pro Inspection Kit includes the Squarellel Checker, 3-Points and Indicator Swival Adaptor.

For more information, check out our video on YouTube
